Disposable e-cigarettes are very popular; they are incredibly convenient. MOJO has a well-known disposable e-cigarette, and the Chinese e-cigarette information site has also promptly obtained this product. Next, we will provide a live teardown review for those interested.

MOJO Disposable E-Cigarette Review: Live Teardown with Images

1. Appearance

The product's appearance will not be elaborated on much; the outer packaging is relatively simple, which is a good way to control costs for a disposable product. The main body has inner packaging, and the items entering should have disinfection and isolation measures.

The e-cigarette's main body design is simple, made of plastic with a frosted texture. The mouthpiece has no slots and can only be used by hand; it cannot be held in the mouth for continuous inhalation. This design is reasonable, as that posture is somewhat low-class.

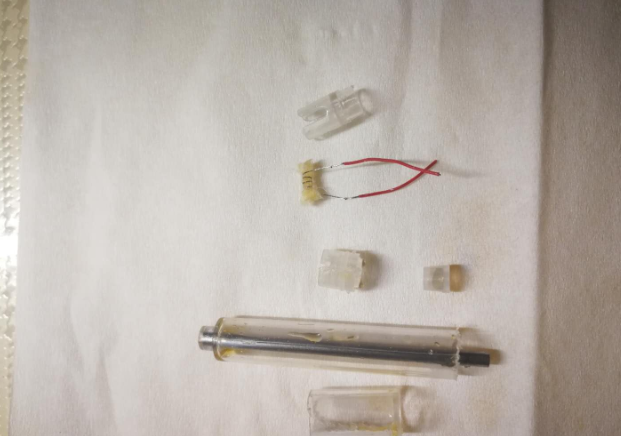

2. Let's analyze the internal structure. It can be easily disassembled from the bottom with a blade. After disassembly, all internal components can be directly pulled out. The internal components include the battery, oil chamber, air tube, negative pressure component, heating wire, oil guide cotton, induction switch, and wires.

1. Battery Section

The battery used is quite standard, well-packaged, with specific specifications shown in the image.
The positive and negative contact points are well-made, with full and secure solder joints. From the outside, it appears to be produced by a reputable battery manufacturer. After all, it is close to the face during use, and the plastic casing material must ensure battery quality to avoid safety hazards.
Next, we will disassemble the battery. Please do not disassemble the battery if you do not have relevant professional knowledge, as it can be dangerous. Remember, after opening the battery's outer packaging, you can see that it is a polymer lithium battery. The two layers of copper foil are rolled up many times, and the thin black layer on the copper foil is carbon and cobalt lithium, with an ion exchange membrane separating them. This is the basic structure of a lithium battery, which is easy to identify. Lithium batteries can easily catch fire or explode when disassembled, so they have been fully discharged before disassembly.

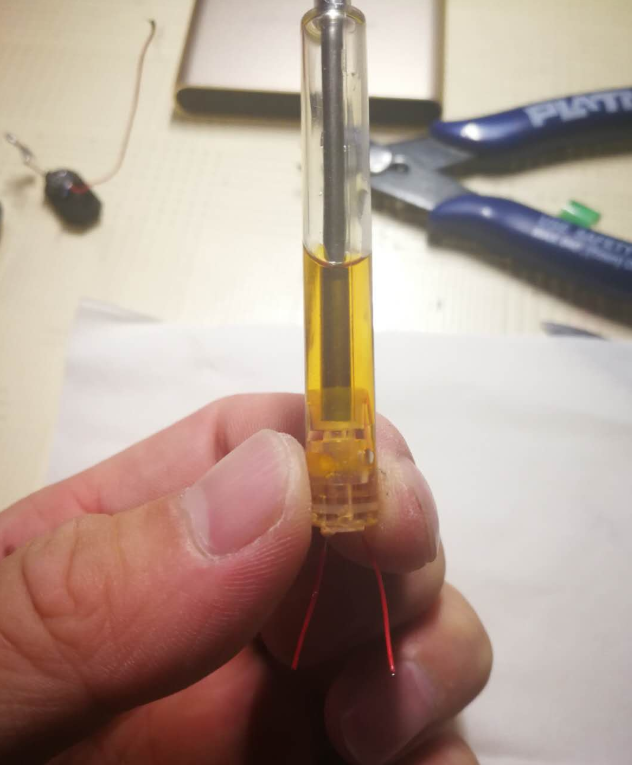

2. Oil Chamber and Negative Pressure Component

The oil chamber and negative pressure component here are the atomizer part of a typical e-cigarette, with the same principle and structure. The oil chamber is long and cylindrical, with a volume of 1.5ml. It uses negative pressure oil guiding, which is reliable and stable, and from the structural design, it can avoid oil guiding issues.

3. Heating Wire and Air Tube

The heating wire uses 0.2 stainless steel wire, with a 2.0 diameter, loosely wound 5 times, and single coil. Seeing this data might feel familiar, right? Yes, the Nautilus atomizer core, if you have disassembled it, has a data of 0.2 wire, 2.0 diameter, and loosely wound 5 times, but it is a dual coil. The Nautilus has been a benchmark for flavor in finished atomizers for many years, using this data to ensure vapor production while maintaining a delicate flavor restoration. This small e-cigarette differs from the Nautilus core in two ways: one is that it uses a single coil design, which will inevitably affect vapor production, and the other is that the oil guide cotton is ordinary oil guide cotton, while the Nautilus uses silk oil guide cotton. The difference in flavor between the two types of oil guide cotton is not significant, but silk oil guide cotton is more tolerant of oil and more durable. However, since this is a disposable product, there is no need to consider the oil type and durability, so there is no high or low distinction.

The air tube is relatively long, which is a necessary result of the oil chamber structure. This will make the flavor more gentle and delicate, improving the restoration of the e-liquid, but it may also cause a decrease in flavor peak. Specific flavor analysis will follow.
#p#分页标题#e#

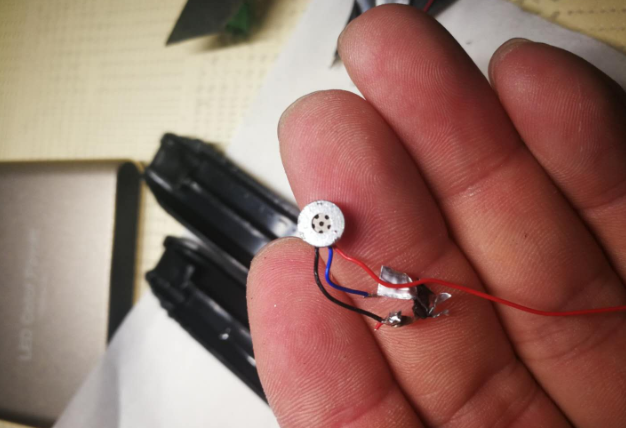

4. Induction Switch and Wires

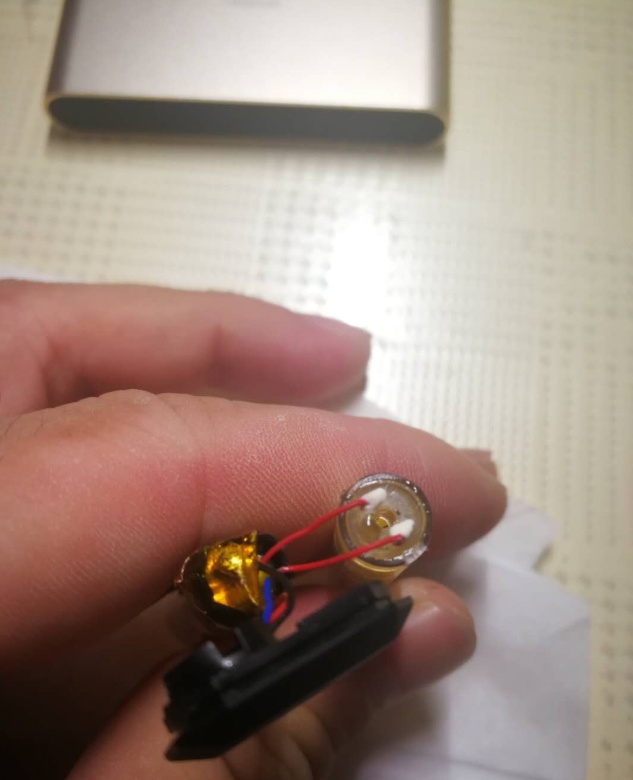

From the images, it can be seen that the heating wire is directly soldered in parallel with the induction switch and battery, which is quite secure, with no cold solder joints, and will not produce jumping resistance. The induction switch is air pressure-based, allowing it to work with both inhalation and exhalation. The structure of the induction switch is simple, but due to the cost control of disposable products, the durability of the switch is relatively poor. The internal valve may easily fail to close when the air resistance changes repeatedly. This means that during use, we should avoid repeated inhalation and exhalation, as this could lead to continuous power supply and battery reliability issues, but there is no safety hazard; it will only cause the e-cigarette to be scrapped.


5. Flavor Analysis

The MOJO disposable e-cigarette comes in five flavors: classic tobacco, refreshing mint, cool honeydew, pineapple slush, and lemon dessert. I only tried four of them and will share my overall impressions. Firstly, there is no oil explosion phenomenon; the long air tube, thin wire, and low power design, along with the right-angle design of the internal structure, prevent oil explosions. These designs also make the flavor more gentle and layered, but they also reduce vapor density and flavor peak. In actual use, there is a noticeable delay in vapor production on the first puff, which is an unavoidable characteristic of mechanical direct-pull systems. Subsequently, vapor is produced slowly, with a relatively high draw resistance, very similar to real cigarettes. Upon inhalation, the flavor of the e-liquid is quickly perceived, and upon careful tasting, the quality of the flavoring is above average, with no obvious bitterness or abruptness, just pure aromatic flavor. The smoothness is moderate; due to structural limitations, both oil guiding and airflow are restricted, and the VG to PG ratio in the e-liquid should have a higher PG content, which gives the vapor a grainy feel, making it less smooth compared to traditional pull-style atomizers. The throat hit is moderate; due to the aforementioned reasons and the use of nicotine salts, the throat hit is just right for those looking to quit smoking. Nicotine salts are easier to satisfy cravings than freebase nicotine; you can look up more details online. Condensate collection is minimal due to the vapor volume and VG content, and there is no occurrence of inhaling condensate or condensate leakage.

In summary, the MOJO disposable e-cigarette product can meet the needs of those looking to quit smoking and provide a good experience for smoking cessation. The flavor is delicate, with diverse options, and the throat hit is moderate, making it a great choice for light to moderate smokers. However, due to its vapor volume, flavor concentration, and battery life, it may not be suitable for heavy smokers or vaping enthusiasts.
