RAGE SQUONK MOD Dual-Battery TC Bottom-Feed Box Mod Review

This time I would like to share with you is the RAGE SQUONK MOD Dual Electric Temperature Control and Pressure Regulation Bottom Note (hereinafter referred to as RSM) produced by Da D Company.

DESIRE DESIGN is a well-known domestic e-cigarette brand manufacturer. The company was established in 2011. At present, Big D is involved in atomizers, rods and boxes, and many excellent products have emerged. This time I got a dual-electric bottom pressure adjustment bottom shot jointly designed and developed by Da D and OHM BOY of the United States

In terms of time, this post has been dragging on for a long time, and I have been moving bricks recently. I was extremely tired when I came back at night and didn't have the time to write feedback. From a technical perspective, I am a novice, the first under-injection device, and the research is not very thorough yet, and there is no available equipment for comparison. packaging

The Tiandi Cover packaging box is enclosed with a pull-out cardboard wrapper (this was the case when I got it, and the plastic wrap on the outside was probably torn off by a certain god)

Three sides of the envelope give different product information: the picture of the front device is very eye-catching, the top left corner is marked with OHM BOY, and the name of this model is the bottom note below.

Further down are the six selling points of the device: short circuit protection, 12-second over-suction protection, low voltage protection, 10-second automatic screen shutdown, over-charge protection and USB charging.

The performance information of the device is given on the back: Try a 18650 battery (previous Big D devices provided 21700 batteries, which may be considered from the perspective of the volume and weight of the device,

This time, the big D abandoned the longer size 21700 and adopted the ordinary size 18650)

Output power range: 5W~155W

Output voltage range: 0V ~8V

Minimum resistance: 0.08 ohms

Temperature control range: 200~600 degrees Fahrenheit, corresponding to 93~280 degrees Celsius

Of course, there are also anti-counterfeiting query labels

The manufacturer information is given on the side (from Youshun Electronic Technology Co., Ltd. in Shenzhen).

A small sticker marked the color of the console (this time I got it was calm and restrained black)

The Tiandi cover packaging box has a simple style, with a typical symbol of Big D in the middle.

EVA is used in both upper and lower parts of the packaging box to protect the equipment. The EVA fixing mold of the box also takes into account the convenience of consumers.

There is a gap at both upper and lower ends, so that your fingers can easily pull out the device.

Everything in the box: mainframe, warranty card, instructions, a data cable, and two scratch-resistant plastic sheets.

The instructions are in Chinese so that everyone can understand them.

The first impression when I get the box is that it is heavy (huge). The manufacturer promotes the smallest double electric bottom injection.

I have not used other dual-electric bottom shots, so I cannot give a comparative evaluation.

The front of the box is a large-D LOGO, but unfortunately it does not shine when used like other large-D devices.

I personally like skin-like paint rather than metal mirrors, although it will leave a little fingerprint.

On the top of the box is a typical 510 connector, which is also printed with OHM BOY. There is no anti-scratch disk.

The equipment is made of zinc alloy, and the corners are very round. When held in your hand, although it is more pressing, it does not cut your hands. The back of the fuselage is rounded and curved, which fits the palm well in your hand.

However, from the perspective of using the ignition button on the side (picture below), it is more suitable for left-handed use (it seems that there are more left-handed people in the Western world).

Of course, it doesn't mean that the right hand cannot be used, but using the face facing the palm is not as easy as using the left hand.

The front of the box is not the common regular shape. The body positions on both sides of the oil injection bottle are designed to be waist tight.

The instructions given by the manufacturer are based on ergonomics, imitating a person's slender waist,

In order to remove excess parts and reduce the size and weight of the equipment.

In terms of shape alone, RSM is more like hanging an oil bottle on the side of a common dual electric regulator box.# p#pagination title #e#

The oil injection bottle has a certain distance relative to the outer surface of the box. In theory,

It can prevent accidental contact during carrying and causing squeezing of the oil bottle to a certain extent.

The side of the RSM body adopts the typical 3-button + display layout of the regulator box, and the USB interface can be used for charging and updating firmware.

The button stroke is moderate and the rebound is strong.

Compared with ordinary dual-electric regulator boxes, RSM's display appears a bit shabby,

It is only 0.69 inches, so the data information that can be displayed cannot be so comprehensive.

I have been using power mode at present, and I have not indicated other modes. Sorry.

In power mode, only battery power, resistance, voltage and power are displayed.

It is limited to a small screen, so the power display is only a column instead of showing the power of two batteries separately.

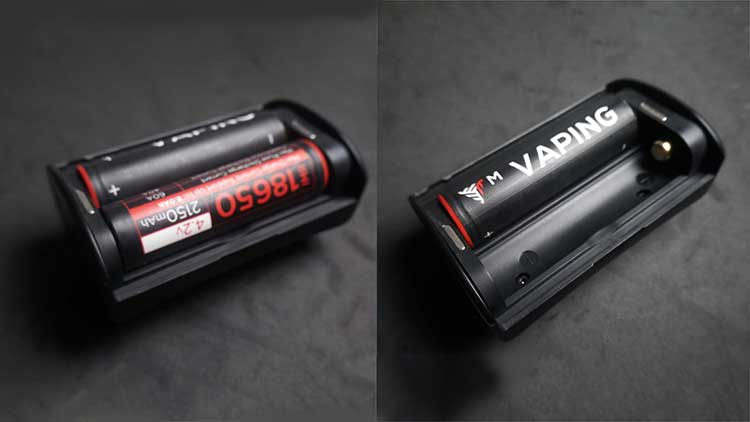

The curved back of the RSM is a battery compartment cover, and there is a strip notch on one side of the fuselage for easy removal of the battery compartment cover.

The RSM electromagnetic bin cover and the main body are attracted by strong magnetism, and the magnetic attraction is good. The interior marks the placement direction of the positive and negative electrodes of the battery, and the elastic electrodes are huge.

In order to prevent the battery compartment cover from shaking during use, RSM has put great efforts into the structure of the battery cover and main body,

The silo cover and the main body are respectively processed into mortise and tenon structures similar to traditional carpentry.

In actual use, the bin cover and the main body fit well, and there was no loose left and right of the bin cover.

Thanks to the curved shape of the battery compartment cover, RSM abandons the common battery streamers and

The exposed space of the battery is large, and the battery can be easily removed during use.

RSM's oil bottle is of a plug-in type. The bottom of the oil bottle is an aluminum alloy bottom cover with a hinged pull ring on it.

At the crescent-shaped gap, use your nails to pull out the pull ring, then twist it left and right, and pull it downward to pull out the oil filling bottle.

The installation process of the oil filling bottle is similar, but the action of scraping is replaced by a top.

(Of course, this is just a sign. Never turn the body upside down to plug and insert the oil bottle during use).

RSM's oil filling bottles are made of gum (a bit of nonsense, which oil bottle doesn't drop like this, except for pressing the press, hey), squeeze the press,

It is very characteristic in design. Aluminum alloy ports are used at the upper and lower ends for fixing,

Of course, the aluminum alloy port is used at the lower end to facilitate the removal and placement of the oil bottle.

As for why aluminum alloy ports are used at the upper end, this is illustrated later.

The oil injection pipe structure is connected to the main body of the oil bottle through threads, and its top is designed in a gear shape to facilitate efforts when screwing.

A gap is cut at the bottom of the rubber hose to prevent the hose from colliding with the bottom of the oil bottle, resulting in poor or impossible oil filling.

During the process of unscrewing the oil injection tube, it is best to hold the metal part at the top with one hand,

Instead of oil bottles, to prevent smoking oil from being squeezed out when too much oil remains in the oil bottle.

Combined with the previous picture, the gum part of the oil bottle is stuck on the metal part, so that when the gum ages,

Is it possible to replace the oil bottle by directly replacing the gum part, thereby reducing the cost of later use??

This needs to be answered by the manufacturer. It depends on whether the oil bottle accessories produced by the manufacturer are the whole body or only the glue part.

Remove the oil bottle and you can see the position of the oil filling hole corresponding to the body of the oil bottle.

The electrodes on both sides reflect light, which shows that the hole wall at the oil bottle of the body is very smooth.

This can effectively prevent the surface of the oil bottle from being scratched during the process of inserting and inserting the oil bottle.

At the top of the oil bottle, on the aluminum alloy top cover, the manufacturer has unnecessarily placed a plastic port to connect it to the oil injection pipe.

My personal understanding is that on the one hand, it can prevent short circuits; on the other hand, the hole in the middle of the rubber part is made into a downward shrinking structure,

Since the oil bottle hole of the RSM body is a water well mounted structure, we can install the oil bottle in the process of placing the oil bottle

It is difficult to see whether the positive oil filling hole can be aligned with the hole of the oil bottle. It is this kind of curved shrinkage structure,#p#Page Title #e#

Only then can we ensure that the oil bottle is slightly deviated in time and can we also achieve docking (sliding over).

After reading the post written by God Luo Xiaoqing, I probably had the impression that God Luo was curious about the connection method of RSM oil bottles, and he had thought about it for a long time.

Because the body position corresponding to the oil bottle of RSM is not open, but is similar to a water-well structure, the details of the interior are difficult to see clearly.

At the position marked by the red arrow in the picture above, there is a rubber ring at the positive oil filling hole (please ignore the slag quality of this cannon fodder mobile phone),

This makes it easy to understand. Similar to the combination of the casing and the base of the oil dripping atomizer, through the interference fit between the rubber ring and the top port of the oil filling bottle,

At the same time, relying on the friction force of the rubber ring, ensure that the oil bottle will not fall off. In use, there is no phenomenon of oil bottle loosening.

Specific use:

Since I have been moving bricks recently, I am too lazy to change equipment. I have been carrying RSM around in my bag.

You has also been smoking this coffee, and it is almost exhausted.

First of all, let's talk about weight. It's really heavy, the heaviest piece of personal equipment.

The whole set weighs seven ounces, so if you want to carry it out, please prepare a backpack or sack.

Secondly, I would like to give you some personal advice. In fact, it is very convenient to use a single air inlet atomizer for bottom injection equipment. When injecting oil,

Tilt the box towards the opposite side of the atomizer air inlet hole, so that smoke oil will not leak out of the atomizer air inlet hole due to excessive squeezing force.

Of course, you need to loosen your fingers and then set up the equipment after sucking back the cigarette oil.

After thoroughly draining the tobacco oil, the remaining amount of tobacco oil in the oil-filling bottle was very small, only one or two drops. This performance was still very good.

As for other usage models, I have not tried them yet. If you are interested, you can look for the articles of Luo Shen, Zheng Xiang and Lie Wang.

finally it summarizes

My first bet was extremely precious, so I praised it more than my shortcomings.

Temperature control and pressure adjustment bottom injection, protected by chip, I like Xiaobai very much, at least for comfort.

Combined with a small dripping oil, it is a powerful tool for travel. Compared with conventional RTA, it is convenient to change silk and cotton, and no oil will be wasted because of pasting the core halfway.

Solid materials, round body, full grip, and fine workmanship.

The shortcomings, apart from some points mentioned in the article, the most important ones are serious.
