Rincoe MANTO 228W Review
Beyond the smoking-replacement function of e-cigarettes, some younger users are also passionate about producing huge clouds. They entertain themselves on live-streaming platforms and even perform on talent shows, attracting countless fans. To create dazzl
In addition to the cigarette replacement function of e-cigarettes, there are also some young players who are keen on heavy smoke. They not only entertain themselves on various live broadcast platforms, but even appear on the big stage of talent shows, attracting countless fans. To perform dazzling skills such as fantasy mother-child rings, jellyfish, and tornadoes, in addition to solid technology, we also need a high-performance host that can quickly create large smoke. This is also the greatest existence of high-power e-cigarette hosts. value.
The Rincoe MANTO mainframe uses dual 18650 batteries, with a maximum power of 228W. It has built-in power and temperature control modes and powerful horsepower.
Both sides of the fuselage are equipped with large-area 2.5D imitation glass panels, supplemented by streamlined and smooth angular transitions, which brings a very round and full visual effect as a whole, and the feeling of holding it with the hands is also very comfortable.
The display adopts a 2-inch true color large screen display, and the standby interface adopts a simulated 3D display effect and a rounded transition panel, bringing a very beautiful visual presentation.
At the same time, its three dimensions are very properly controlled, and the dual-motor model can still have a slender physique that is one-third narrower than ordinary cigarette boxes, making it very convenient to carry and use.
Rincoe MANTO gives people the first impression at first glance that it is exquisite, round, slender and powerful. It looks very good. How about its external and internal performance? Please join equa in today's Rincoe MANTO e-cigarette kit review.
[Packaging Appearance]
This time, I received the package for testing. The bottom of the package is labeled with a label saying that the samples are for testing only. In terms of completion, it is very close to the retail version. It is a small black carton and covered with a disposable sealing film when it comes to the hand. Ensure that the products received are new and complete.
The front of the package is embossed with a real shot of the suit. The manufacturer's main color is black with a pink color matching host, which looks a little sexy. There are the red-silver Rincoe brand and the MANTO model logo on the two diagonal sides of the front, making the overall layout very simple. The back is printed in all English with a packing list, precautions, product barcodes, etc.. Since it is a test version, there is no anti-counterfeiting code yet. A label for samples for testing purposes is pasted on the bottom. The printing on the left shows that it features a 3D user interface, and on the right, various certification marks such as CE and instructions that the packaging materials meet environmental requirements are printed.
The package is made of upper and lower covers. Opening the upper cover, it can be seen that the suit and main components are nested in the foam material, which is very stable.
Remove all packaging, and the product list is very simple: 1 Rincoe MANTO mainframe, 1 data charging cable, and the rest are printed matter, including 1 warranty card, battery warning card, manual, and certificate of conformity.
When leaving the factory, the mainframe has disposable protective films on the front and back, which can protect large-area imitation glass panels and can be removed before use.
The instructions in the package are printed in Chinese and English color graphics, which is user-friendly and easy to use after a little reading.
Remove the protective film and reveal a very beautiful, round and slender dual-electric host.
Measured measurements of the host machine: length is 90mm, width is 47.5 mm, and thickness is 32 mm. The overall measurements are quite well controlled.
The actual weight of the net mainframe is 152 grams, and the weight of two SONY VTC4 18650 batteries is 242 grams. As a dual-electric metal frame mainframe, the control is very good.
[Host Appearance]
The biggest visual feature of this MANTO console is the large integrated front and rear faces, which gives people the impression of a smartphone. The display on the front 2-inch large color screen adopts an unusual imitation 3D style, which matches the overall The rounded and plump design is quite eye-catching.
The top of the front is the Rincoe brand logo, which is made of IML transparent screen printing and will not fall off easily.
The addition and subtraction buttons at the bottom and the MicroUSB charging port are combined into a face style, which reminds equa of Pikachu. It is very cute. This small design is quite thoughtful, considering both practicality and visual effects. The +/-distance is relatively long and the buttons are too large, so the feel of pressing and adjusting is very good. Its MicroUSB charging port has been measured to support balanced charging of the installed 18650 battery, which will protect battery life well.# p#pagination title #e#
The edges and corners use a transition effect imitating 2.5D glass, and the workmanship is very delicate and high-end.
The back also uses a large area of imitation glass decorative panel, but it is more concise, and the MANTO brand logo is printed on the bottom.
In terms of details, this back plate also uses IML transflective printing process, and the interior has regular geometric textures, which looks very stylish.
The left side of the mainframe is a metal middle frame, which is made of matte matte paint. The joint seam is very small and the craftsmanship is excellent. A large ignition button is placed in the upper position.
This ignition button adopts a retro style that imitates a switch, with the top tilted slightly outward, but in fact it does not bounce like common lamp socket switches, only the upper part can be pressed slightly. The buttons are made of metal and the surface is covered with a piano finish. The pressing force feedback is very crisp, and it is easy to press with your index finger when placed.
No function is placed on its right side, and it provides support for the tiger's mouth when holding.

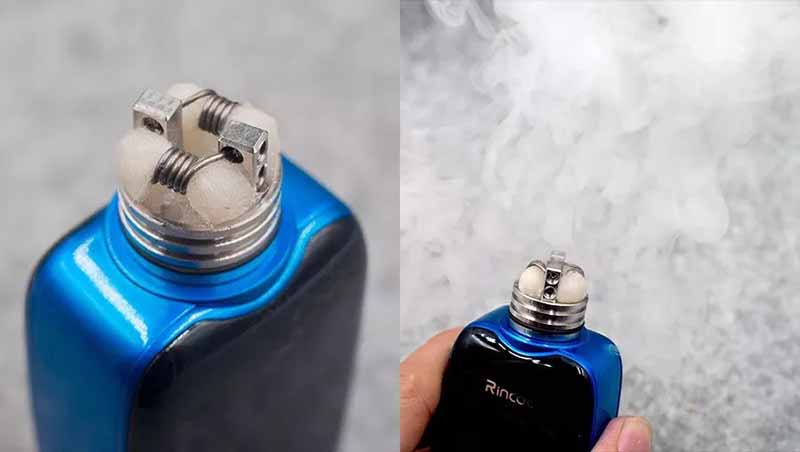

The top is a standard 510 electrode, and the positive elastic electrode design can provide support for various standard 510 standard atomizers.
A more beautiful design of the electrode table is that it extends outward to a circular platform, which matches the cutting surfaces of the front and rear panels, making it visually more beautiful. However, the requirements for the process obviously need to be improved a lot, showing that the overall process is excellent. From this angle, you can also see that the corners have also been very rounded, so there will be no problem with hand cracking as a whole.
There are four heat dissipation and pressure relief holes on the bottom, which is still necessary for high-performance hosts with 228W power. Safety is always the first priority. A small groove for opening the battery cover can be seen in the middle of the lower side edge. The battery cover can be opened by gently pinching with your nails here.
Its cover plate uses 6 magnets to attract each other, which is very stable. The measured suction force is quite large, and it takes a little effort to open it.
At this angle, you can see two details: one is that the battery can still be exposed about 1/4 after installation, so that you can take the battery directly without pulling the rope on the side, which is more convenient; the other is the circular platform that extends outward from the 510 electrode platform introduced earlier, which not only plays a very good decorative role, but also plays a positioning and fixing role after combining with the cover plate, so that the cover plate will not have any shaking when in use, which is very stable.
The electrode on one side is an elastic electrode, which is well compatible with battery lengths whose design is not accurate enough.
[Host Function]
As a dual-battery high-power host, its functional design is relatively comprehensive, with built-in power and temperature control modes, and supports custom adjustment of the color of the standby interface (figure below). Judging from the standby interface, the 3D user interface printed on its packaging is still worthy of its name, but it is only a static visual effect and has no dynamic response. Compared with the excellent workmanship and performance of this console, I personally feel that this is not its biggest highlight.
In standby state, press the ignition button three times in 2 seconds to enter the menu interface. After that, press the +/-button to switch between menus. The main menu functions include power mode (① below), temperature control mode (Figure ④ below) and settings menu. In fact, the functions of each menu are very simple, such as entering the power mode (Figure ① below), pressing the ignition button to confirm to enter the taste selection (Figure ② below), and then pressing the ignition button to enter the power mode standby interface (Figure ③ below). Also enter the temperature control mode (②), press the ignition button to confirm and enter the temperature control heating wire selection (④). After selecting, you can enter the temperature control mode (Figure ④ below).
If you select the third item in the main menu, you can enter the settings. You can adjust the brightness, screen standby time, main screen color matching, and restore factory settings. If you select the third main screen color matching, there are 7 colors presented in pie chart style. If the following figure switches from the default orange to blue, the standby interface will turn into blue.
In terms of safety protection, the host provides safety protection functions such as short circuit protection, low resistance protection, long press protection, high temperature protection, and low voltage protection.
[Host power curve output test]
For actual use, the power output depends on the amount of smoke and taste experience. Therefore, equa uses a current-voltage power meter in series and parallel it on the electrode to directly measure the output power, and uses a TTL-USB communication module to upload real-time data to the computer, intercept its relevant measurement data, and make a graph, so that its power output is more digital.
First, looking at the output at the maximum power of 228W, equa used a 0.11 resistor and two fully charged SONY VTC4 18650 batteries to test, and obtained a maximum power output of 217.5W. During the overall 10-second test interval (10 seconds is the safety protection period set by the host), an average power output of 208W can be obtained. The output shows a double peak mode. The overall situation is relatively stable and basically conforms to the output positioning of 228W.# p#pagination title #e#
At 180W output, a maximum output of 189W can be obtained, and at the same time, it also shows a double peak output curve, with a 10-second average of 178W, which is very strong.
The 150W output also has a double peak output, and the overall output level exceeds 150W, with a 10-second average of 154W.
Test summary: Rincoe MANTO's output is quite unique. It may take into account the discharge effect of the DC battery. This mainframe has made some targeted adjustments. Unlike ordinary mainframes that drop gradually after ignition, it will present another peak in the middle and rear., making the overall output relatively stable. From the test point of view, the performance at 180W, especially 150W, is very strong, and there is a slight gap at the output with the maximum output value of 228W. It is speculated that it is related to the best matching resistance, but the overall average output of 208W is even slightly higher than that of e-cigarettes in this range, which is generally in line with their output positioning of 228W.
Another feature of this mainframe's output is that it maintains a constant current output mode almost throughout the entire process. From the above test charts, we can see that its current value changes little, and more is the increase and decrease of the matching voltage. This solution has been used in the past. It is rare in e-cigarette power tests. Reminds that if this host wants to have full power output, the battery needs to have a strong high-current discharge capability.
[Experience]
As a dual-electric host, Rincoe MANTO has a very slim figure. Coupled with the overall round and plump body design and the appropriate ignition button position, it is easy to ignite with your thumb in front holding or use your index finger in reverse holding. The overall feeling is very comfortable to hold and use.
In terms of ignition and smoking experience, this slim mainframe combined with a small oil-dripping atomizer is equa's favorite. The overall size will be very small. The output power set at more than 200W can bring a very smooth smoke experience. The ignition response is very fast, at the click, for low-resistance coils, you can produce large smoke in seconds, and the experience is very satisfying.
When paired with a pure taste atomizer such as gobang, it can work at a power of less than 20W to replace cigarettes. Of course, it is not a problem, and it can bring a rich and pure cigarette oil taste experience. In terms of body shape, the overall body will appear relatively slender and match.
Use it to match a giant like the TFV12, and there is no problem in power driving, which can bring a dual experience of heavy smoke and rich taste. However, the overall appearance seems too long, and portability will be affected.
Of course, the issues of what kind of atomizer to match, what purpose to use, and whether it is beautiful are left to the user to consider the matching. Overall, this dual-electric mainframe with sufficient power and slim shape is paired with a small model The atomizer will be more beautiful, but based on its open and mid-mounted 510 atomizer platform, it does not prevent it from being used in combination with atomizers of any size.
The temperature control function is responsive and accurate when tested, making it suitable for lazy people and careless users.
In terms of heating, this mainframe is very well controlled. This is probably because the contact surface is mainly a large imitation glass panel in front and back, so it is not easy to feel temperature changes, even in high-power working scenarios above 200W.
[Summary]
Rincoe MANTO is a dual-electric host for high-power application scenarios. Streamlined corner transitions provide a round and full design, properly controlled measurements bring a quite slender portable physique, and fine workmanship brings a very refined look. Therefore, it provides a round, slender and exquisite experience overall. For players who like to play with heavy smoke, or who want to avoid future upgrades in one step, this is a very recommended host!
