Leading the Way — IJOY Captain RTA and CaptainS Tank Review
Leading the way — IJOY Captain RTA. In the vape world, the Captain really lives up to its name: the highest-ranking leader responsible for the safety and effective operation of the whole ship. Hello everyone! In this article I’m introducing what I believe
Best Pilot-IJOY Captain RTA Captain Nebulizer
In the Vape circle, he is actually like this.
Captain,
Maintain the safe and effective operation of the entire ship,
Is the highest level leader on board.
Hello everyone! I'mXiao Huangren + Feng! Also a forumcc2819！
?
This article introduces to you,
He is the leader who I think can call a model of industry design
?
IJOY Captain RTA Captain Nebulizer
[Brand]
As one of the most well-known brands in the cigarette industry, Y
was named"National High-tech Enterprise" ，
Integrate the concepts of high-end quality, design aesthetics and innovation into all product lines,
Bringing a new stylish look, sensory enjoyment and functional use to Vapors.
?
Players familiar with Y must know that
IJOY Recently launched a new Captain series of products,Including the main unit and the atomizer.
Captain RTAIt is also one of them.
andIJOYThe strength of the brand is indeed worthy of it."Captain", thisleaderThe title.
[Packaging]
?
Captain RTA gives me the feeling that it is easy to get started.
Because during the disassembly process, every thread is always smooth and smooth.
Each component has a unique design but is very well crafted,
There are no industrial traces such as cuts or burrs.
It can be seen that IJOY manufacturers pursue quality.

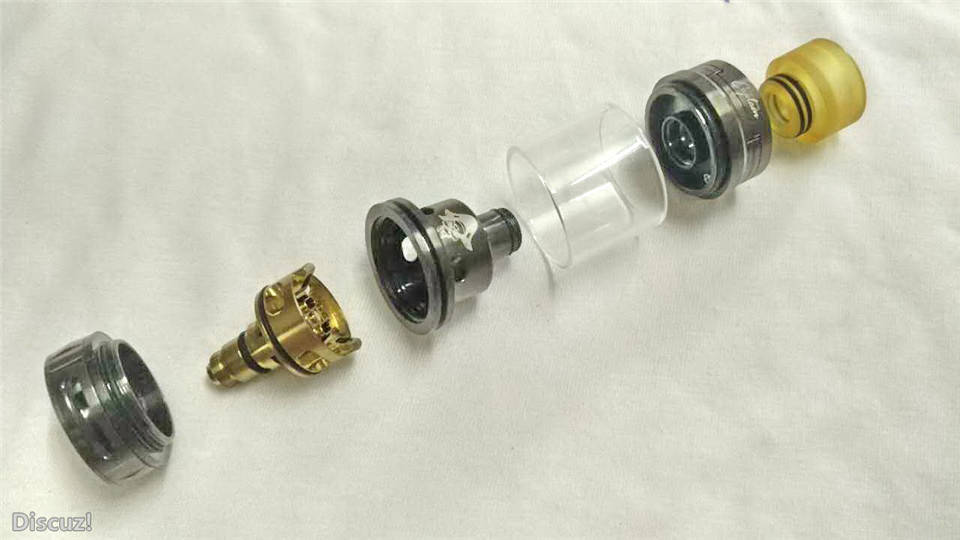

After disassembly, the components are as shown in the figure, in order:
Suction nozzle, top cover, glass chamber, inner chamber, electrode table, base.
Each component is explained in detail below.
?
#p#Pagination Title #e#[Dripping]
I believe you have come into contact with PEI materials a lot.
Excellent thermal insulation performance.
When the PEI nozzle is 10mm high,
Then it's really not easy for you to burn your mouth.
Although
Put another tall hat on the big man... 233333
The barb design similar to the mad dog structure prevents condensation from entering the mouth.
The suction nozzle is standard 810 interface,
A 510-rpm interface is also included in the accessory kit.
In this way, he can replace most third-party suction nozzles on the market.
Do whatever you want,
Free and free ~
?
[Top Cover]
Same top oil filling, different opening method.
If you are careful, you will find the arrows on the top cover and "PUSH"Words.
Yes, he wanted to tell you,
From here "pushed open"Oil can be added.
The side slide design makes your oil filling easier.
Maybe everyone will care very much,
Can this side-slip design lock the oil tank?
Will there be oil leakage?

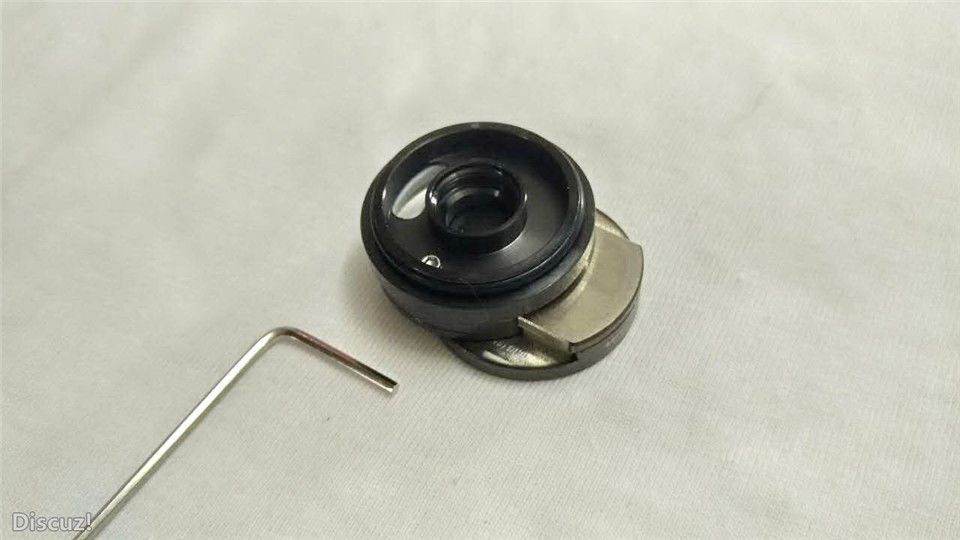

We used the hex socket screwdriver in the accessory kit,
Unscrew the set screw at the bottom and
It can be further disassembled.
It can be seen that personalized silicone gaskets are used in the middle to achieve oil locking,#p#pagination title #e#
The connection between the parts is also very tight,
However, I have never found any top oil leakage in my actual use.
Therefore, Captain RTA's side slide design is enough to reassure people.
?
[Neicang]
Skull CaptainThe pattern is beautiful, but not the point.
After the smoke formed in the warehouse,
After gathering,
Pass through this long flue to the top.
And this long flue,
It is one of the culprits that Captain RTA has grown too high.
(Covering face)
It reminds me of several classic atomizers:
Rose, Typhoon, KF...
And they have the same label:
taste。
A flue long enough to
It can make the taste of the smoke layered and reduce the temperature of the smoke.
Its physical shape can also reduce frying oil entering the mouth to a certain extent.
And these advantages,
They are often ruthlessly castrated on "chunky" atomizers.
Personally, I am very happy that Captain RTA has maintained this part of the plan.fully functional。
If you are careful enough,
You will see from the picture that there is a circle of thin grooves at the bottom of the inner bin.
This design reduces heat conduction from the atomizer to the bottom,
Avoid the impact of hot atomizer on the main machine.
?
#p#Pagination Title #e#[Electrode table, base]
Let's talk about the base.
The base provides the bottom air intake structure of Captain RTA.
The intake adjusting ring is infinitely adjustable within a 30-degree angle,
It's still reasonable.
But when the electrode table and base are combined,
You can see that the electrode table is so high,
The upper edge of the base is extremely empty...
?
Sometimes, design,
is atrade-offsThe way.
When Captain RTA abandoned the tightness of intake air,
He will definitely stand out in another way.
At this time, I have to pull the inner warehouse into this unit again.

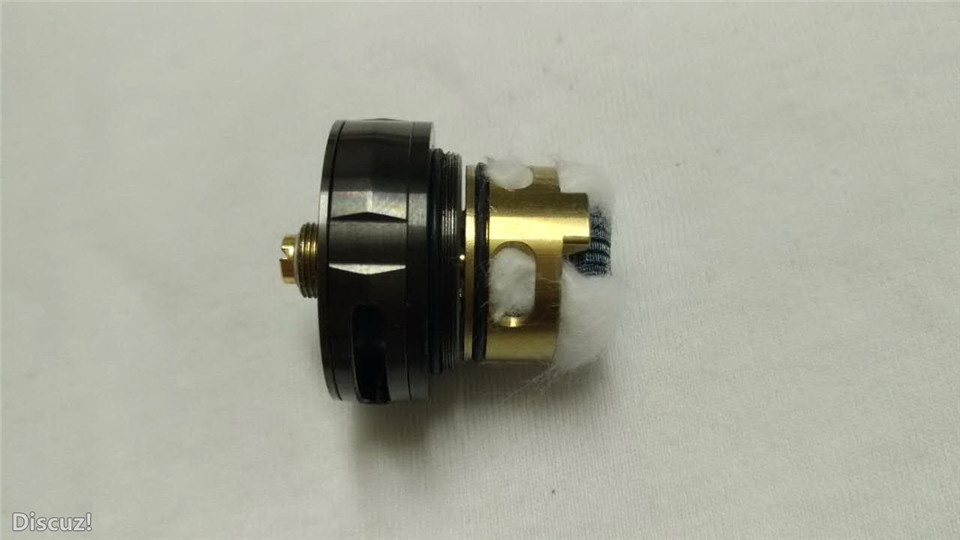

The inner bin is fixed on the base through threads,
The electrode table is fixed between the two by using upper and lower rubber rings.
#p#Pagination Title #e#Do you see?
What I want to say is:
After installation and fixation,
The electrode table can be rotated! It's moving! Yes!
Look at the four oil inlet holes on the outer periphery of the inner warehouse.
By rotating misalignment,
Adjustment of the oil intake can be achieved.
Of course, it can also be completely closed,
If you put it in your bag this way, you won't be afraid of leaking oil ~
Of course
This design is also one of the culprits of Captain RTA growing too high.
[Experience]
Follow the above step,
Then install the glass chamber, top cover and drip nozzle,
The installation is completed.
Finally, add oil and experience it.
As mentioned earlier, the extremely empty air intake,
In fact, it also provides enough air intake effect,
The smoke performed quite well.
The air intake window is also relatively wide,
Only when it was turned off by about one-third did you begin to feel an obvious change in suction resistance.
?
Fortunately, the blowing holes on the electrode table are long enough,
Otherwise, the taste will inevitably appear empty.
In terms of taste,
The space in the warehouse is tight and the utilization rate is extremely high.
Smoke passes through long flues,
The multiple flavors of tobacco oil are fully layered.
The temperature at the smoke inlet is not high,
No frying oil condensation inlet,#p#pagination title #e#
very smooth
In terms of use, a tall person seems a bit cumbersome...
But the oiling method of sliding top cover gives us great convenience.
After turning off the oil inlet, I took two more puffs.
Burn the cotton slightly dry.
Leave it horizontally all night,No oil leaks were found at the bottom,
The gap between the top sliding cover is slightly moist,
But no oil leaks out.
?
[Summary]
?
Captain IJOY Captain RTAatomizer
?
Maybe he's not cute enough,
But he is absolutely stable and reliable.
Repeating what I said before,Design is a trade-off.
When other atomizers ruthlessly castrate some of their functions in order to be "chunky",
Captain RTA, the big guy, made sacrifices to show these advantages.
And IJOY's design idea of opening and closing seems moredomineeringIs it?
[Advantages]
Standard 810 nozzle connector
Adaptable 510 suction nozzle
3.8ml oil storage capacity
Slip top cover oil
24k gold plated electrode #p#pagination title #e#
Barrier-free horizontal silk making
Adjustable oil intake
[Disadvantages]
25mm diameter 57mm height, slightly larger
25mm diameter 57mm height, slightly larger
25mm diameter 57mm height, slightly larger
above isIJOY Captain RTA Captain NebulizerEvaluation report.
