Yuwu All-in-One Vaping Device: A Different New Experience in 2018

2. Operation instructions

The new machine can only be used after adding tobacco oil to soak the atomizing core for three minutes.

Turn on/off: Press silver five times in 2 seconds to turn on/off.

Function adjustment: Press three times in 1.5 seconds to enter the output power function adjustment mode: adjust one gear every three times. The corresponding output voltage for each gear is: red light: 3.9V, green light: 3.6V, and blue light: 3.3V.# p#pagination title #e#

Smoking: Press and hold the button to smoke, release the button to stop smoking.

Charging: When a continuous red light flashes, it prompts that the battery voltage is too low. Please charge it in time. The red light goes out when fully charged.& nbsp;

Oil injection: When the amount of smoke is reduced or there is a burnt smell during use, please add oil in time (see the oil injection method on the back for specific operations.

#p#Pagination Title #e#

3. Product characteristics

1. This product uses steel pipe heating wires with high energy consumption efficiency. It has the characteristics of fast heating, large and balanced smoke volume, long working hours (300 ports), and easy replacement of heating wires.

2. The product design fully considers humanization

a. The product feels like smoking when holding the button in your hand, and the cigarette holder is particularly comfortable in your mouth.

b. Make full use of the residual heat emitted by the atomizing core. The heat of about 40℃ passes through the palm and the tiger's mouth into the palm, like holding warm jade in your hand.# p#pagination title #e#

4. Product configuration

1. One set of host products (built-in 0.4 heating wire)

 2. Accessories: one cigarette holder and one 0.5 atomizing core.

One charging cord. Fourth, a small cloth bag.

#p#Pagination Title #e#5. Matters needing attention

A. Before using the product, please read this manual carefully for correct use.& nbsp;

B. During charging, please pay attention to keeping the host and charger away from fire sources and hot areas.& nbsp;

C. If you do not use the product for a long time, please empty the atomizer and turn off the main unit.

D. Please wash and wipe the cigarette holder frequently with warm water or tissue.

E. This product is not suitable for minors and people allergic to nicotine, pregnant women, nursing women and not suitable for smokers.& nbsp;#p#Pagination Title #e#

6. Refueling methods

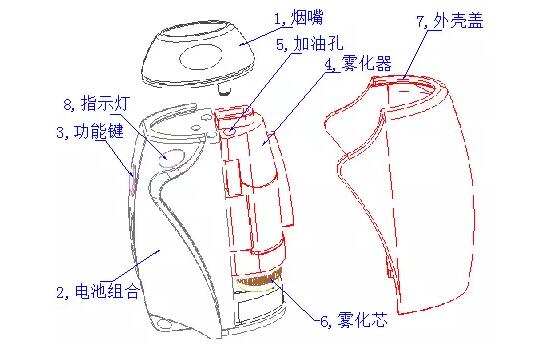

1. Press the top surface of the cigarette holder and the lower bottom surface of the battery pack with the index finger and thumb of the left hand respectively.

2. Pull open the shell cover 7 with your right hand.

3. Pull out the cigarette holder upwards.# p#pagination title #e#

4. Inject smoke oil into the oil filling hole.

5. Use tissue to wipe clean the oil on the cigarette holder and the top surface of the atomizer.

6. Cover the cigarette holder and shell cover and use it.

7. Replacement method of atomizing core

The atomizing core is not in use for a long time. The aging or charred tobacco will make smoking difficult. At this time, the atomizing core must be replaced.

 #p#Pagination Title #e#

1. Press the top surface of the cigarette holder and the lower bottom surface of the battery pack with the index finger and thumb of the left hand respectively.

2. Pull open the shell cover 7 with your right hand.

3. Pull down the atomizer together with the cigarette holder (magnet connection).

4. Unscrew the old atomizing core and dump the tobacco oil inside.

5. Replace with a new atomizing core. Remove the cigarette holder and add tobacco oil to cover the cigarette holder.

6. Install the atomizer downward, close the lid7, and let the tobacco oil soak the atomizing core for 30 seconds. It can be used normally.
